5050 Rgb 3 Led Ultrasonic Led Module With Lens Ip67 Waterproof Korea Design Dc 12V Module Light For Signage

Date: 2022-05-31

Description:

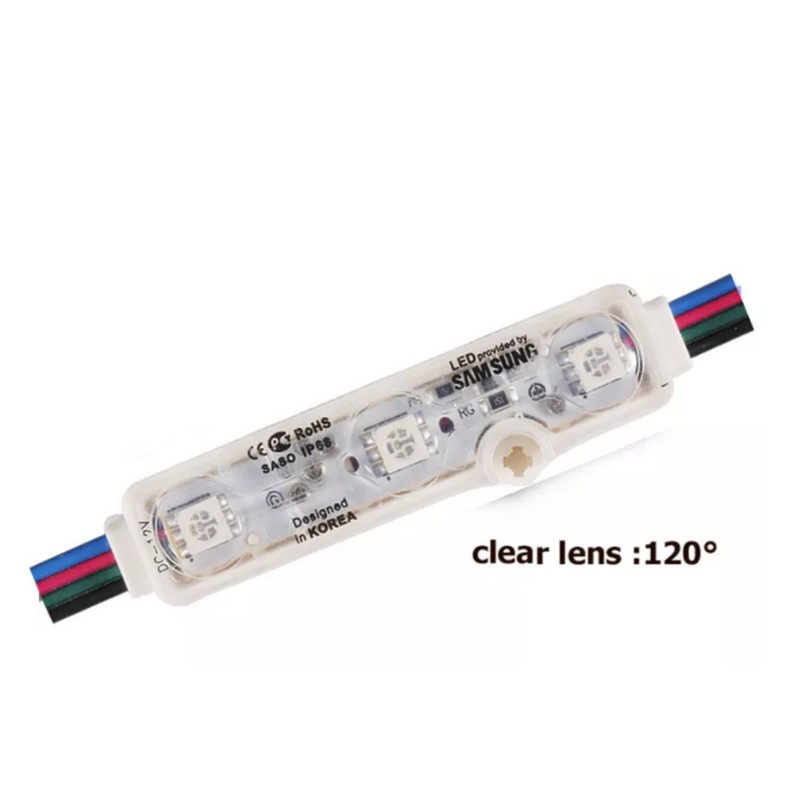

5050 RGB 3 led ultrasonic led module with lens IP67 waterproof korea design DC 12v module light for signage
1.Select and use outdoor 5050 smd led light source,
2.Products with low power consumption ,high brightness ,long life(>50,000 hours) ,maintenance-free.
3.The shell is made of injection molding technology, beautiful appearance ,good cooling effect
4.The production is made by injection machine,
5.IP68 waterproof rating up above.
6.Apply in 3cm,8cm,10cm,and 15cm or more depth outdoor light box.
7.1m2 can install 50-60 units of 3leds module, 40-50 units of 4leds module.

Description

Specification:

Model No. 3UM5050RGB-C
Led type 5050
LED brand Epistar
Voltage DC12V
Power 0.72W
Operating Temperature -10-50°
Luminous Flux 70lm
Beam Angle 160°
Electric Current 90 ma
PCB Double-side FR4
Waterproof Grade IP67
Warranty 3 years

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 4

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 5

Application:
1.Lights for fountain, spring, waterfall, pool
2.Decoration lights for furniture: shelf, wardrobe, etc
3.Marine signal and task lighting
4.Architectural outdoor lights
5.Lights for events and show
6.Decoration lights for bar, pub, club, disco

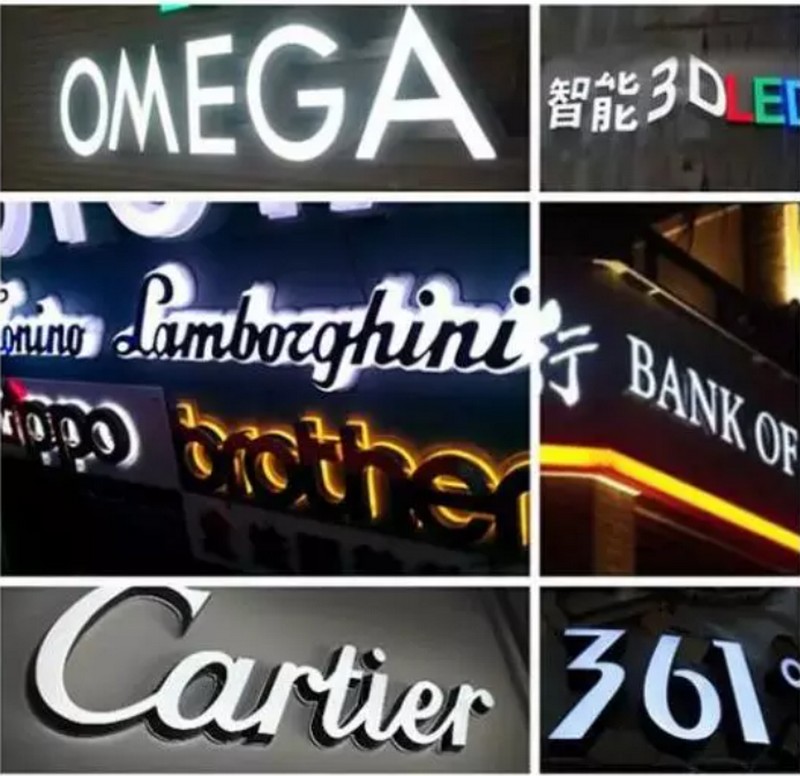

7.Backlight of signage and channel letter

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 8

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 9

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 10

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 11

Packing & Delivery:

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 12

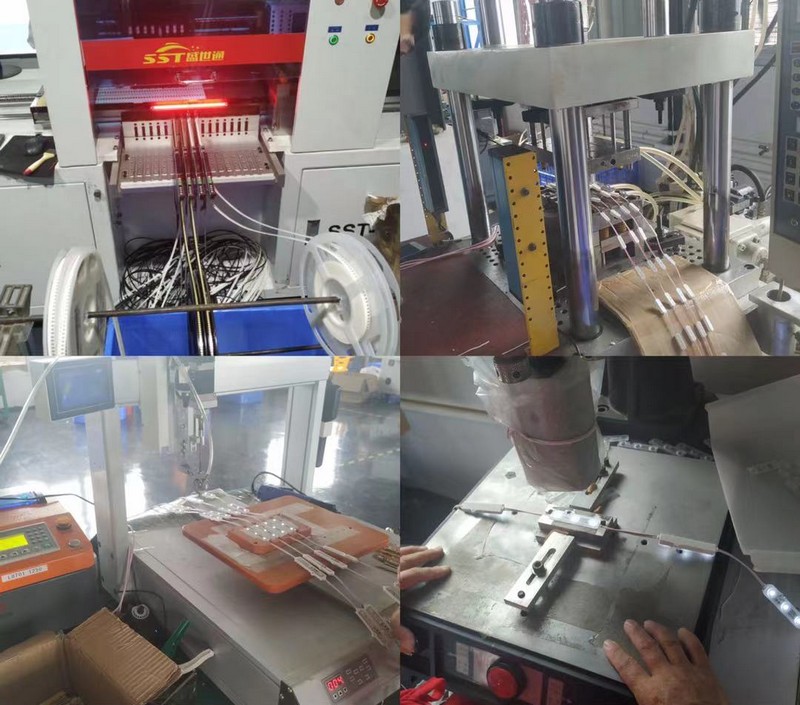

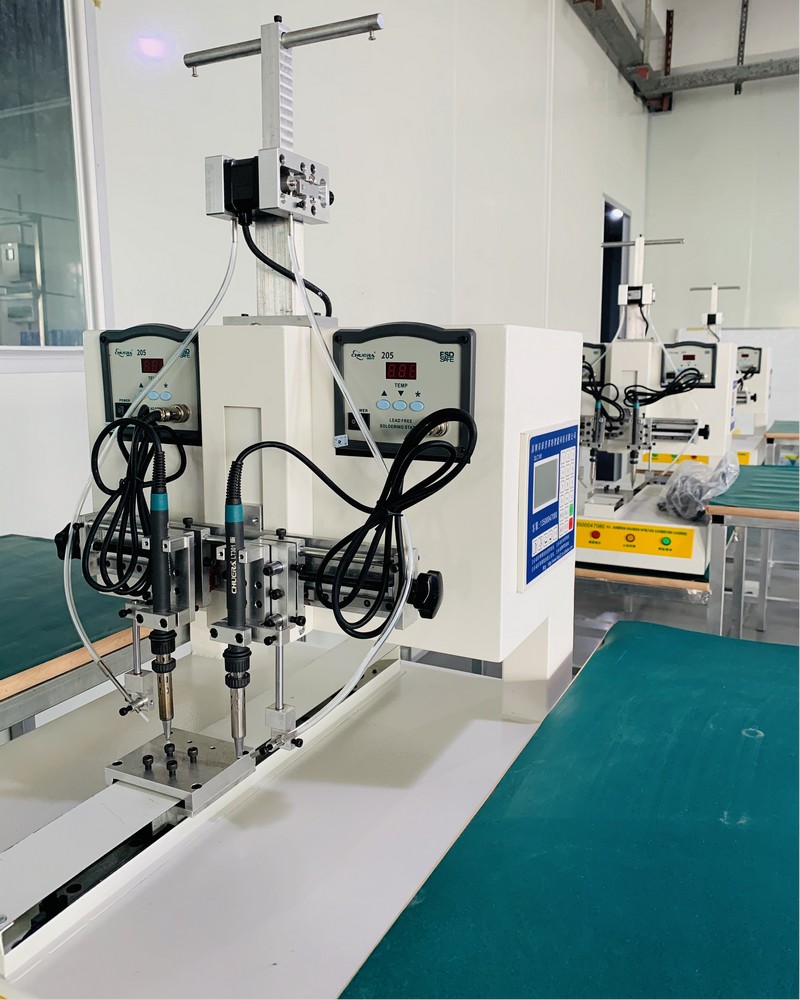

Our production line:

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 13

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 14

5050 rgb 3 led ultrasonic led module with lens ip67 waterproof korea design dc 12v module light for signage 15
